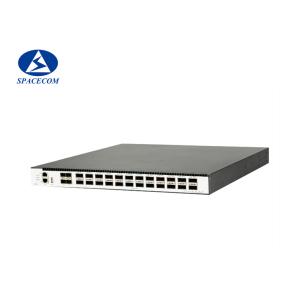

SPACECOM SPC-TAP-20Q4Z TAP switches
Description
The SPACECOM Series TAP (Test Access Port) is high performance Pizza box switches to meet next generation network visibility requirements, for delivering network traffic data to out-of-band and inline network and security analysis tools.
SPC-TAP-20Q4Z: Standard 1U 19’’ rack mountable; 4x10GE SFP+ Ports (Combo); 20x40GE QSFP+ Ports; 4x100GE QSFP28 Ports; Dual modular power supply.
| Product Name: | SPC-TAP-20Q4Z TAP switches | Model Name: | SPC-TAP-20Q4Z |
|---|---|---|---|
| Main Board Spec: | 20x40GE QSFP+ 4x100GE QSFP28 | Console Type: | RJ45 |
| Operating Voltage: | 100 ~ 240V | Operating Temperature Range: | 0ºC - 45ºC |
Features
Hardware Summary
| 1. Basic | ||
| Product Name | SPC-TAP-20Q4Z | |
| Product Positioning | Traffic aggregation, load balance or traffic monitoring | |
| Switching Method | Store and Forwarding/ Cut Through | |
| Packets Cache | 9MB | |
| CPU Model/ Frequency | PowerPC P1010 667MHz | |
| Flash | 2GB (NAND) | |
| Memory | 1GB | |
| Hardware Configuration | Main Board Spec | 20x40GE QSFP+ |
| 4x100GE QSFP28 | ||
| Uplink Network Sub Card | Not Support | |
| Console Type | RJ45 | |
| Outband Eth Management Port | 1 RJ45 GE Eth port | |
| Inband Eth Management Port | Not Support | |
| USB Ports | Support | |
| 2. Performance Spec | ||
| Switching Capacity | 2.4Tbps (20x40GE + 4x100GE) | |
| 3. Hardware and Software Description | ||
| Hardware Summary | • Standard 1U 19'' rack mountable | |
| • 4x10GE SFP+ ethernet port (Combo) | ||
| • 20x40GE QSFP+ ethernet port | ||
| • 4x100GE QSFP28 ethernet port | ||
| If Uplink network card support hot plug ? | Not Support | |
| Software upgrade method | TFTP/FTP | |
| Service interruption time when reboot system for software update | less than 120s | |
| 4. The Power Supply and Power Requirements | ||
| Type of Power Supply | AC | Support |
| DC | Support | |
| Power supply range | AC | Operating Voltage: 100 ~ 240V; 50/60Hz Maximum Voltage: 90 ~ 264V; 47~63Hz |
| DC | Operating Voltage: -36 ~ -75V | |
| Double Power Input ? | Support | |
| The power supply module is pluggable ? | Support | |
| Max Power Draw | < 160W | |
| 5. Overcurrent and overvoltage protection | ||
| Whether the equipment installation overcurrent, overvoltage protector ? | Yes | |
| Surge protection level | 4 KV | |
| 6. Others | ||
| Hardware Size (H×W×D) in. | 4.36 x 44.0 x 47.0 cm (1.73 x 17.5 x 18.5 in.) | |
| Weight (kg) | 8.3kg (include One PSU) | |
| Cooling Mode | Fan cooling (Front-to-Rear airflow) | |
| Quality of Fans | 4 (3 + 1 Backup) | |
| Whether to support the fan module pluggable? | Support | |
| If the fan support intelligent speed control function ? | Support | |
| Operating Temperature Range | Operating temperature: 0ºC to 45 ºC | |
